The GS Automatic outdoor distributed energy storage system integrates core parts such as the battery units, PCS, fire extinguishing system, temperature control systems, and EMS systems.

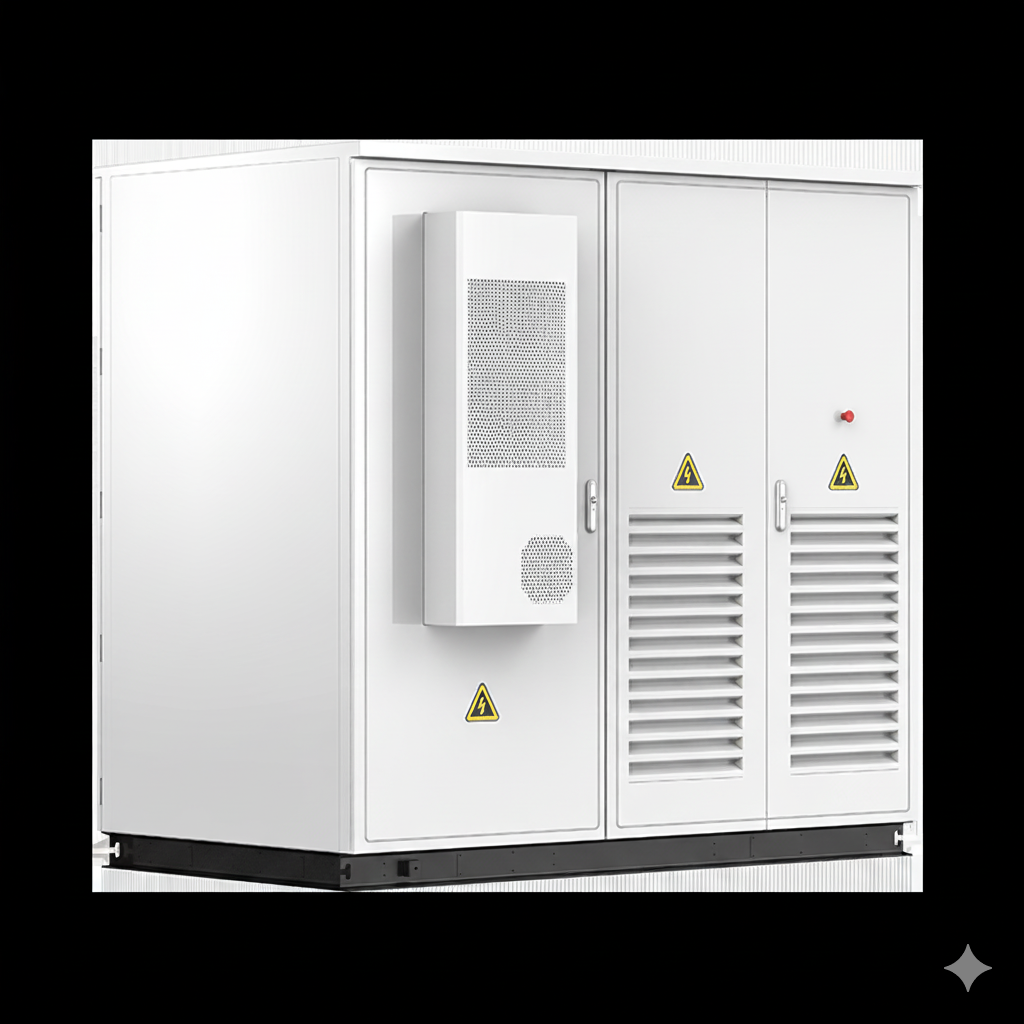

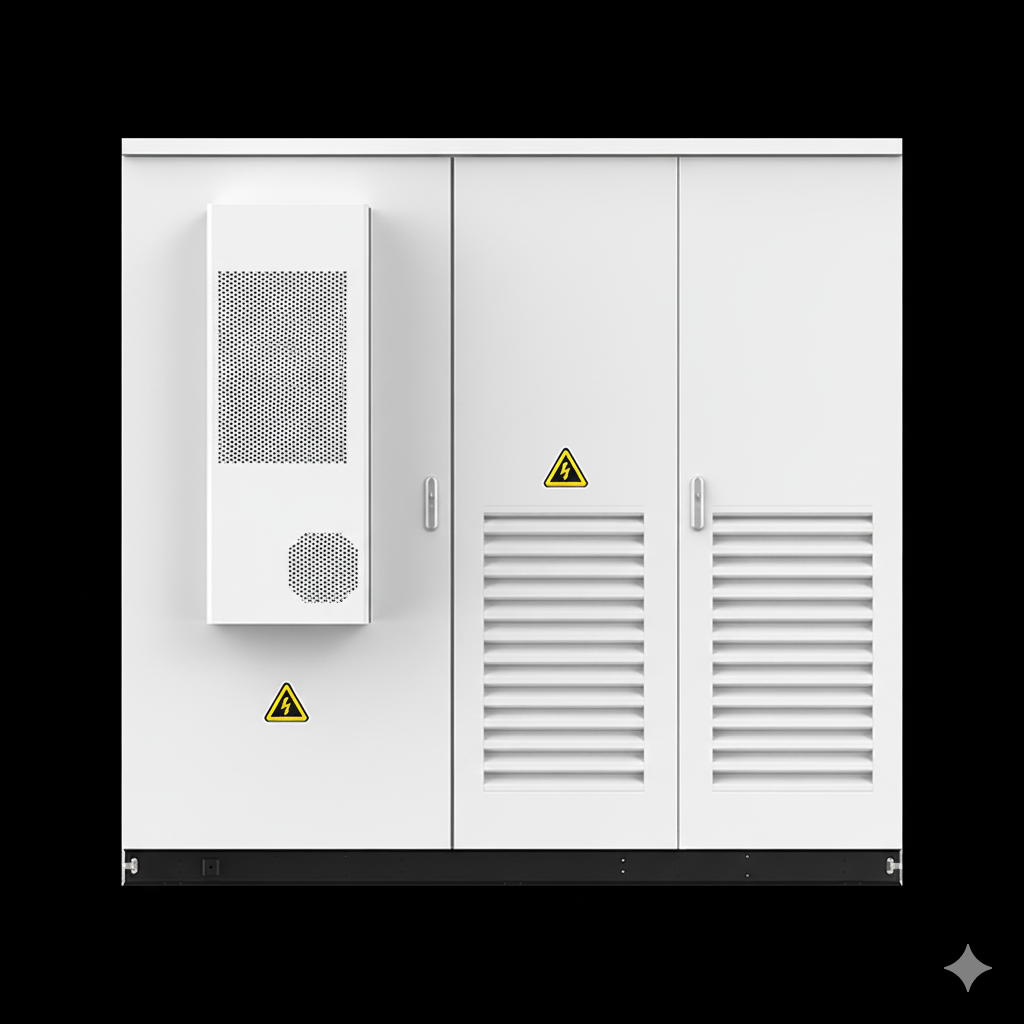

GS Outdoor energy storage system is a compact and flexible ESS designed by GS Automatic based on the characteristics of small C&I loads. The GS Automatic outdoor distributed energy storage system integrates core parts such as the battery units, PCS, fire extinguishing system, temperature control systems, and EMS systems. It can meet the capacity requirements of 50kWh~215kWh.
Product Highlights
Flexible
The outdoor energy storage system supports the flexible expansion of PV capacity and simultaneous access to load, battery, grid, DG, and PV, highlighting its role tailored for small C&I energy storage needs.
Intelligent
It supports battery capacity, discharge time prediction, peak shaving and dynamic transformer capacity expansion, offering smart commercial and industrial energy storage solutions.
Reliable
Featuring an integrated EMS for safe, stable operation, and a built-in isolation transformer for strong load adaptability, GS Automatic BESS maintains a stable power supply and adapts to fluctuating loads.
Key Strengths
Technical Parameters
| Model | GSESSA0030B-0055 | GSESSA0050B-0055 | GSESSA0050B-0100 | GSESSA0100B-0215 |
| AC data | ||||
| Rated power (kW) | 30 | 50 | 50 | 100 |
| Rated voltage (V) | 400 | |||
| Rated current (A) | 43 | 72 | 72 | 144 |
| Voltage range (V) | 320V-460V | |||
| Rated frequency (Hz) | 50/60 | |||
| Frequency Range (Hz) | 45-55 / 55-65 | |||
| THDi (on-grid) | <3% | |||
| THDu (off-grid) | ≤ 1% linear; ≤ 5% non-linear | |||
| Power factor | 1leading~1lagging(settable) | |||
| Overload capacity | 110% long-term | |||
| Grid type | 3W+N+PE | |||
| Isolation transformer | 100/400 | 200/400 | 200/400 | 270/400 |
| On / off-grid switching | Support | |||
| PV data | ||||
| Max. PV input voltage (V) | 1,000 | |||
| Max. PV power (kW) | 36/72 | 60/120 | 60/120 | 120/180/240 |
| MPPT operating voltage range (V) | 250~850 | |||
| Buck-boost mode | Support | |||
| Battery data | ||||
| Cell type | 3.2V/120Ah/LFP | 3.2V/120Ah/LFP | 3.2V/280Ah/LFP | 3.2V/280Ah/LFP |
| Rated voltage (V) | 460.8V，1P144S | 460.8V，1P144S | 358.4V，1P112S | 768V，1P240S |
| Rated energy (kWh) | 55.296 | 55.296 | 100.352 | 215.04 |
| Operating voltage range (V) | 403.2~511.2 | 403.2~511.2 | 319.2~397.6 | 672~850 |
| Max. charge and discharge rate | 1C@25℃ | 1C@25℃ | 0.5C@25℃ | 0.5C@25℃ |
| Number of battery cycles | ≥3,800 | ≥3,800 | ≥6,000 | ≥6,000 |
| General data | ||||
| Dimensions W *D *H (mm) | 1,780×1,520×2,290 | 1,780×1,520×2,290 | 1,780×1,585×2,290 | 2,460×1,560×2,425 |
| Weight (kg) | 2,000 | 2,200 | 2,400 | 3,900 |
| Operating temperature (℃) | 0～+45 | |||
| Relative humidity | 0 ~95%（non-condensing） | |||
| Ingress protection | IP54 | |||
| Noise emission (dB) | <75 | |||
| Max. operating altitude (m) | 5,000(>3,000 derating) | |||
| Cooling | Intelligent air cooling | |||
| Fire extinguishing system | Aerosols/NOVEC1230(optional) | |||
| Display | Touch LCD display+cloud platform | |||
| EMS communication | RS485，TCP/IP | |||
Why choose GS Automatic ESS?
【Integrated Design for Easy Transportation and Installation】GS Automatic’s outdoor energy storage system features a compact, modular design, simplifying deployment and reducing installation time for commercial and industrial energy storage projects.
【Reduce System Operating Costs】The Advanced BESS architecture and efficient energy management make the battery energy storage system a cost-effective solution for C&I applications to lower maintenance and operational expenses.
【Can be Used for a Variety of Backup Purposes】Flexible configuration of the system allows backup for peak shaving, load shifting, or emergency power, ensuring reliable operation under diverse scenarios.
【Turnkey Projects】 As one of the trusted energy storage system manufacturers, Megarevo provides complete solutions from design and delivery to commissioning, supporting a smooth deployment for both commercial and industrial energy storage systems.
【Support 7*24 Remote Service】The continuous monitoring and remote support guarantee system stability and quick response to any operational issues, reducing downtime and ensuring high reliability.
GS Energy provides a complete range of high voltage all-in-one battery energy storage systems designed for commercial, industrial, and large residential applications. Each system is factory pre-configured, combining inverter(s), battery modules, BMS, microgrid controller, HVAC, fire protection, and an outdoor-rated enclosure into a single plug-and-play BESS C&I energy storage battery solution. With modular scalability, multi-level safety protection, and flexible installation options, GSL’s C&I BESS ensures stable, reliable, and cost-efficient power supply for businesses, utilities, and energy communities worldwide.
Smart, Scalable & Reliable ESS for Commercial and Industrial Projects GS ENERGY delivers next-generation commercial energy storage systems engineered for businesses that demand high efficiency, long-cycle performance, and uncompromised safety. Built with Tier-1 LiFePO₄ battery modules (51.2V 314Ah, 14.34kWh) and backed by over 8,000 charge cycles, each system provides up to 112kWh and can be expanded to 3,584kWh (3.5MWh) with 32 units in parallel. Whether for solar self-consumption, peak shaving, backup power, or microgrid deployment, GS ENERGY enables enterprises to reduce electricity costs while ensuring stable power supply and long-term operational reliability.
Scalable 20kWh – 60kWh Lithium Ion Energy Solutions for Commercial & Industrial Applications The GSL HV51100 Series is a state-of-the-art high voltage battery storage solution engineered for commercial and industrial energy applications. Utilizing lithium ion high voltage battery technology, the system can be deployed as a 20kWh battery, 40kWh system, or scaled up to a 60kWh battery configuration, providing versatile energy storage for offices, factories, telecom sites, and microgrids. Designed with intelligent air-cooling and robust thermal management, the HV51100 Series ensures reliable operation and a long 6,500+ cycle lifespan. For enhanced flexibility, the system supports up to 32 battery units in parallel, while compatible inverters allow 10 units in parallel, enabling large-scale power storage solutions. With IP54-rated enclosures and international certifications including UL1973, UL9540, UL9540A, and IEC62619, the HV51100 Series delivers safe, scalable, and future-ready high voltage battery storage, ideal for demanding commercial and industrial environments.
All-in-one Liquid Cooling Energy Storage Cabinet System 261kWh All-in-One Liquid Cooling Energy Storage Cabinet for Industrial & Commercial Applications Engineered for Industrial & Commercial Power Reliability Introducing the CESS-125K261, a next-generation 261kWh all-in-one energy storage cabinet developed by GS ENERGY, a global manufacturer specializing in commercial and industrial ESS solutions. Powered by high-capacity 314Ah LiFePO₄ cells, an intelligent liquid-cooling thermal system, and a high-efficiency 125kW PCS, this solution delivers stable, safe, and cost-efficient energy storage for factories, malls, hospitals, data centers, and microgrid projects. Whether your goal is peak shaving, backup power, energy optimization, or renewable integration, the CESS-125K261 provides a scalable, plug-and-play platform designed for long-term performance.
As a leading energy storage system supplier, GS Automatic offers compact, integrated cabinet BESS designed for small C&I, hospitals, conferences, and weak power grid areas.
GS5T0215-PV050 Nominal capacity: 110kWh Maximum Input Power: 96kW Rated Output Power: 50kW Maximum Output Power: 50kW Net Weight: 1370 kg Gross Weight (with packaging): 1420 kg Unit Dimensions: 1000 × 1320 × 2145 mm Dimensions with Packaging: 1070 × 1390 × 2285 mm
GS5T110-PV050-B03 Charging/Discharging C-rate: ≤0.5CP Rated Power [kW]: 100 Rated Current: 144A Dimensions [mm] (D*W*H): 1400×1200×2200 Weight [kg]: 2450±5%
