MEGA series PCS is specially designed for grid-level applications. Please visit our website for more details.

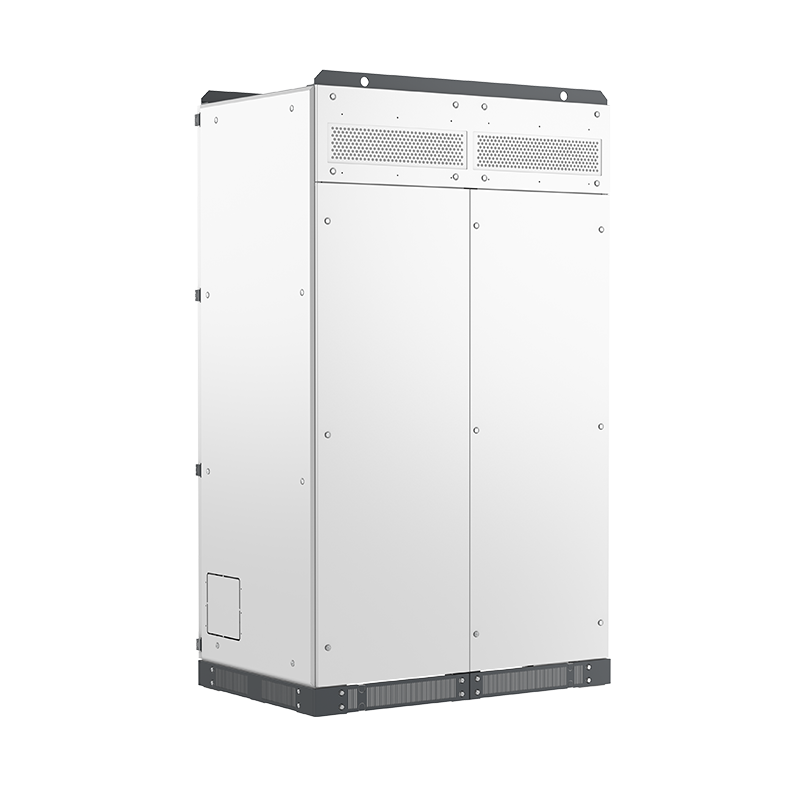

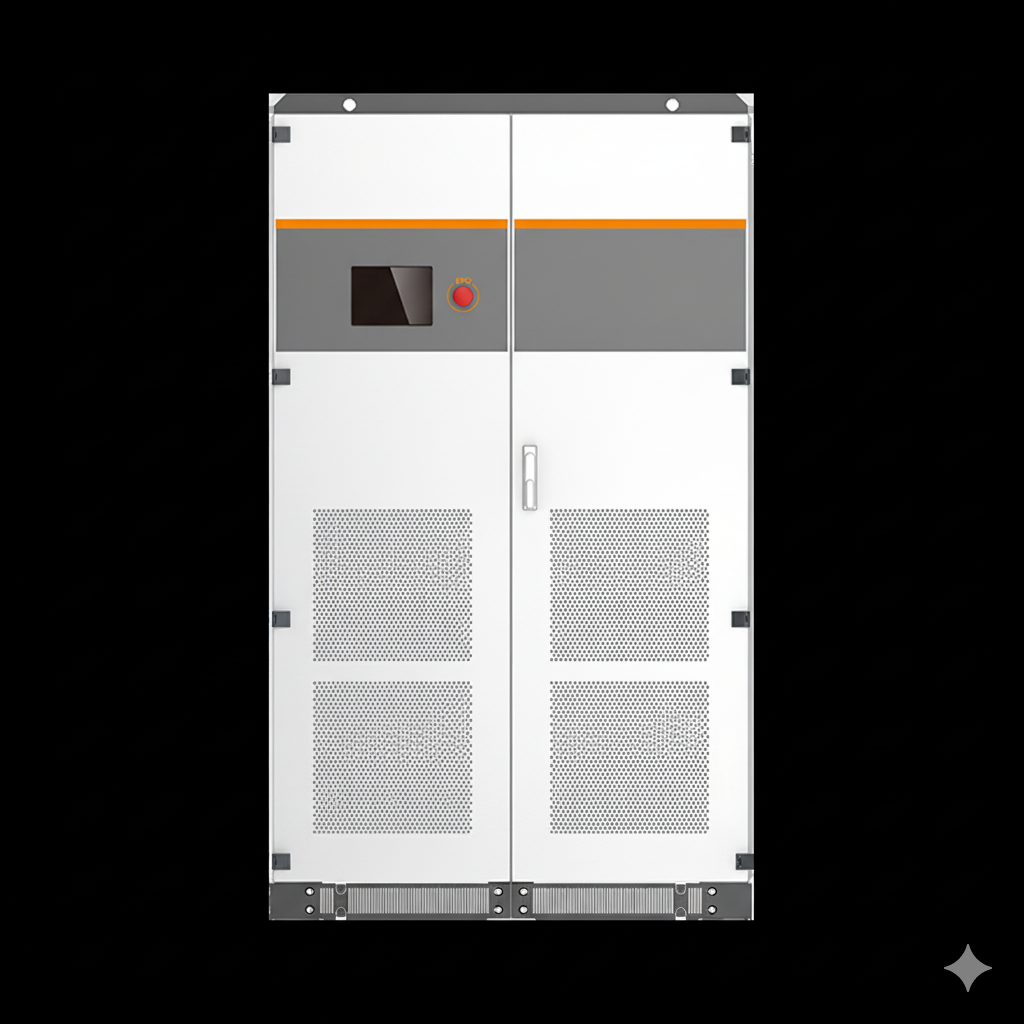

MEGA series PCS is specially designed for grid-level applications. It has multi-machine parallel connection, grid black start, SVG function, supports IEC61850 communication protocol and can meet various scenarios of power generation, transmission, distribution and consumption.
Key Strengths
Product Highlights
Safe and reliable
Passed IEC/EN 62109-1/-2, EN 62477-1, IEC/EN 61000-6-2/-6-4, EN 50549-1, GB/T 34120, GB/T 34133, CGC-R46103:2018A, PTPIREE REV1.2 : 2024 TYPE B certification test;
Flexible configuration
Wide battery voltage range, support multiple battery access;
Reactive power and active power adjustable;
Intelligent and efficient
The maximum efficiency reaches 98.7%;
With grid-connected charge and discharge, off-grid independent inverter function
Technical Specifications
| Model | GS-MEGA0500 | GS-MEGA0630 |
| DC(battery) | ||
| Voltage range (V) | 600~900 | |
| Max. current (A) | 929 | 1,170 |
| AC(on-grid) | ||
| Max. output power (kW) | 550 | 693 |
| Rated output power (kW) | 500 | 630 |
| Rated voltage (V) | 400 | |
| Voltage range (V) | 320~460 | |
| Rated current (A) | 722 | 909 |
| Max. output current (A) | 800 | 1,000 |
| Rated frequency (Hz) | 50/60 | |
| Frequency range (Hz) | 45~55/55~65 | |
| THDi | <3% | |
| Power factor | 1leading~1lagging(settable) | |
| Grid type | 3W+PE | |
| General data | ||
| Max. efficiency | 98.7% | |
| Ingress protection | IP21 | |
| Noise emission (dB) | <70 | |
| Operating temperature (℃) | -30～+55 | |
| Cooling | Forced air | |
| Relative humidity | 0~95% non-condensing | |
| Max. operating altitude (m) | 5,000(>3,000 derating ) | |
| Dimension W*D*H (mm) | 1,000*700*2,050 | |
| Weight (kg) | 950 | |
| Transformer | / | |
| Self-consumption | ＜0.5% | |
| Display and communication | ||
| Display | LCD touch-screen | |
| BMS communication | RS485, CAN | |
| EMS communication | RS485, TCP/IP | |
| Certificates | IEC/EN 62109-1/-2, EN 62477-1, IEC/EN 61000-6-2/-6-4, EN 50549-1, GB/T 34120, GB/T 34133, CGC-R46103:2018A, PTPIREE REV1.2 : 2024 TYPE B | |
